Automatic submission of new images for Pearl AI analysis

With Pearl AI activated, as you acquire an individual image or a series, each image is submitted to Pearl AI automatically for analysis as applicable.

Note: If you are using the Modality view, automatic submission also occurs when you acquire in Simple Mode.

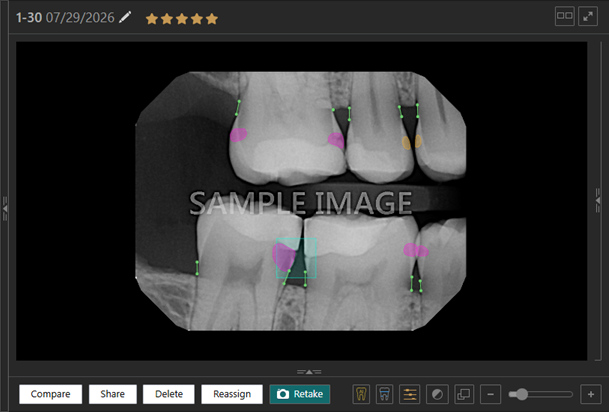

When you finish the acquisition, the following can appear on the image automatically:

• Results of the calculus analysis - Shaded teal boxes appear on the image where possible areas of interproximal calculus were detected.



  Note: You can position your pointer over a calculus box to view the AI severity level.



• Results of the caries progressed analysis - Shaded pink areas appear on the image where possible areas of progressed decay were detected.



  Note: You can position your pointer over a progressed decay area to view the AI severity level and the percentage of dentin and enamel.



• Results of the caries incipient analysis - Shaded yellow areas appear on the image where possible areas of incipient decay were detected.



  Note: You can position your pointer over an incipient decay area to view the AI severity level and the percentage of enamel.



• Results of the notable margin analysis - Shaded purple boxes appear on the image where possible margins were detected.



  Note: You can position your pointer over a margin box to view the AI severity level.



• Results of the periapical radiolucency (PRL) analysis - Shaded blue areas appear on the image where possible signs of inflammatory bone lesions around the root apices of teeth were detected.



  Note: You can position your pointer over a PRL area to view the AI severity level.



• Results of the restorations analysis - Shaded gray boxes appear on the image where possible bridges, crowns, fillings, implants, and root canals were detected.



  Note: You can position your pointer over a restoration box to view the type of restoration and the AI severity level.



• Results of the bone level (RBL) analysis - Lines appear on the image where bone levels were measured. The color of a line (white, green, yellow, orange, or red) is determined by the severity of the calculated bone loss.



  Note: You can position your pointer over a bone level measurement line to view the calculated percentage of bone loss.



Do any of the following:

• If you have acquired a series, to view detections for another image in that series, click (or tap) that image under Image Navigator.

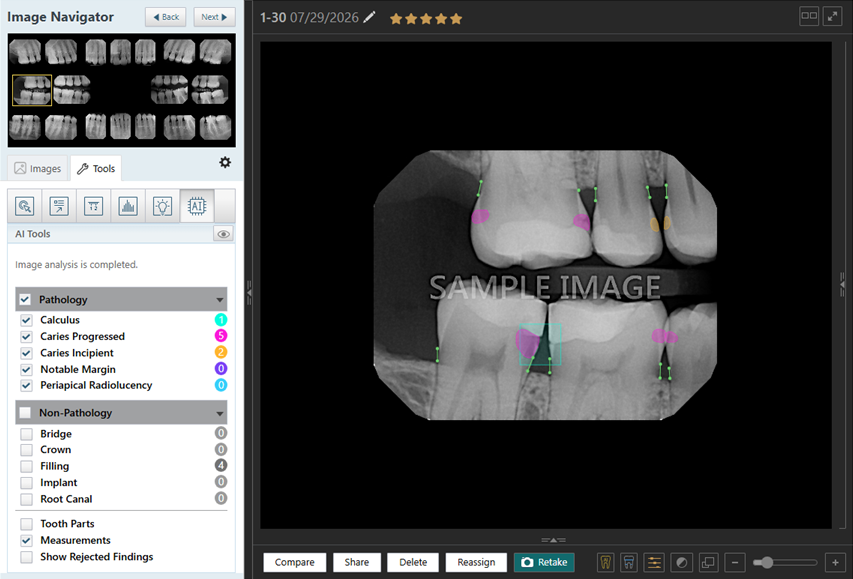

• For a selected image, on the Tools tab, select the AI tool.



  On the left, for each finding, the number of instances found in the image being viewed appears in the circle to the right of that finding's name.

Note: For information about hiding Pearl AI findings and tooth anatomy, refer to the topics about hiding and showing findings and hiding and showing tooth anatomy.
