TWAIN with Eva Select Sensor Setup Guide

This guide describes the installation and setup of the ImageWorks Eva Select intraoral sensor for use with Dentrix Ascend Imaging via a TWAIN driver.

Overview

Dentrix Ascend Imaging supports the acquisition of intraoral images from ImageWorks Eva Select intraoral x-ray sensors via TWAIN drivers on a computer running the Windows operating system. The ImageWorks Eva Select sensor drivers must be installed on each computer that will acquire images from an ImageWorks Eva Select sensor.

Note: Prior to the installation of the ImageWorks Eva Select sensor drivers, the acquisition agent application must be installed on each computer that will acquire images. Refer to Setting up the acquisition agent for instructions on downloading and installing the acquisition agent.

Required Setup for the ImageWorks Eva Select Intraoral TWAIN Driver

Note: It is possible that the ImageWorks TWAIN driver has already been installed and configured on the computer if the ImageWorks Eva Select sensor was working in the office prior to the office using Dentrix Ascend Imaging. To verify if the TWAIN driver is already installed, once the acquisition agent has been installed, open Dentrix Ascend Imaging, start an acquisition, and expand the acquisition device menu to see if ImageWorks TWAIN appears; if so, skip to the "Testing" section.

To install the TWAIN driver, do the following:

1. Unplug the sensor from your computer.

2. Launch the installer (TWAINInstall.cmd) as an administrator.

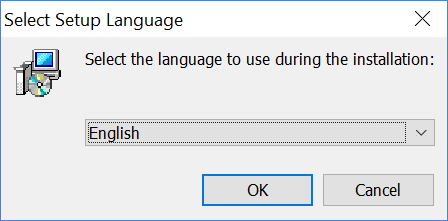

   The Select Setup Language dialog box appears.



3. Select a language, and then click OK.

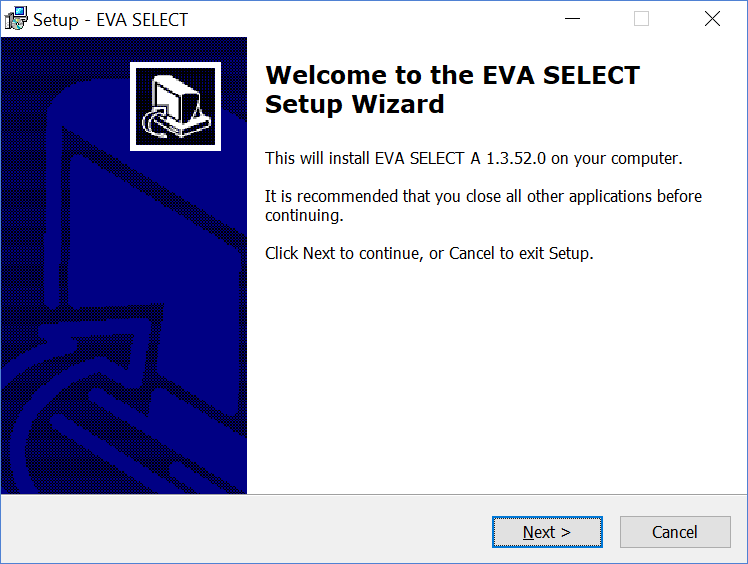

   The Setup - EVA Select Wizard starts and displays the Welcome screen.



4. Click Next.

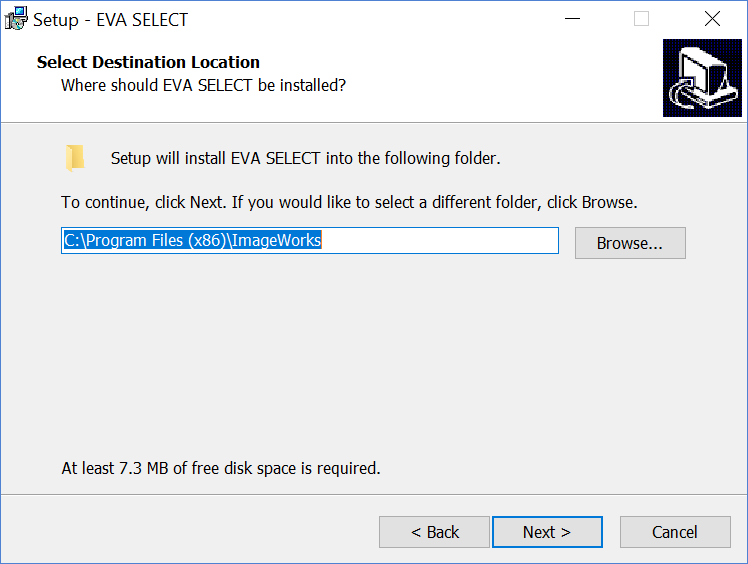

   The Select Destination Location screen appears.



5. Verify that the destination location is correct, and then click Next.

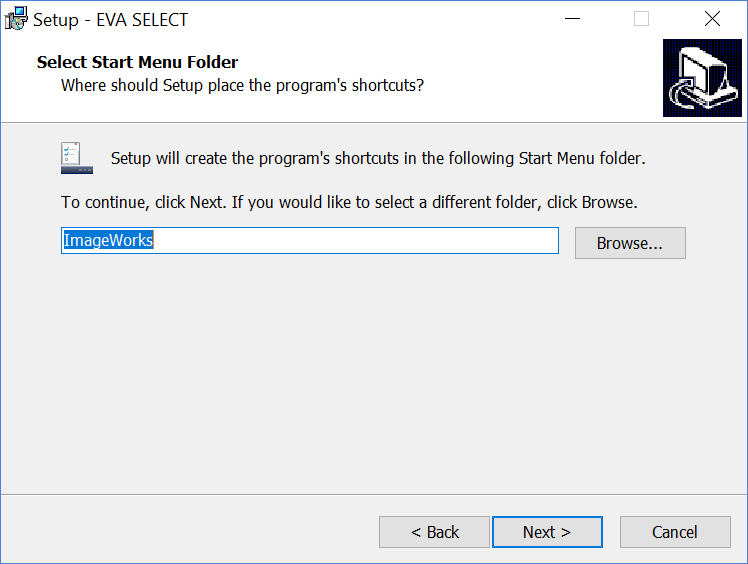

   The Select Start Menu Folder screen appears.



6. Verify that the name for program on the Start menu is correct, and then click Next.

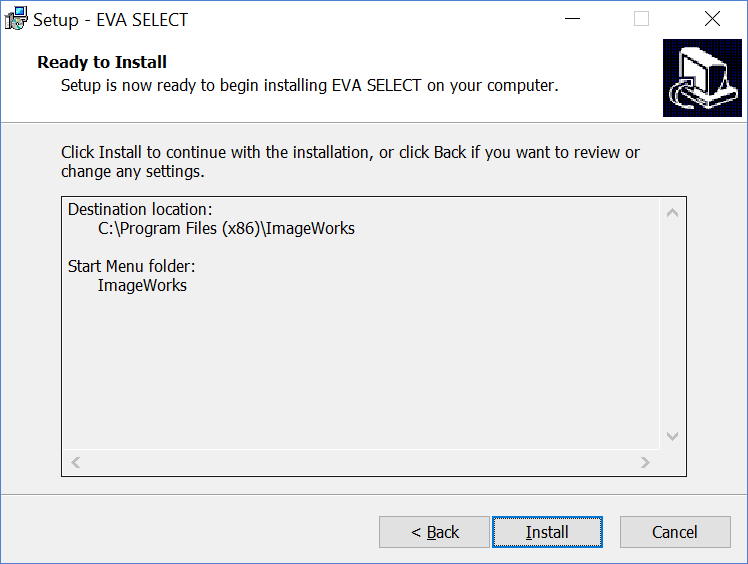

   The Ready to Install screen appears.



7. Click Install to begin the installation.

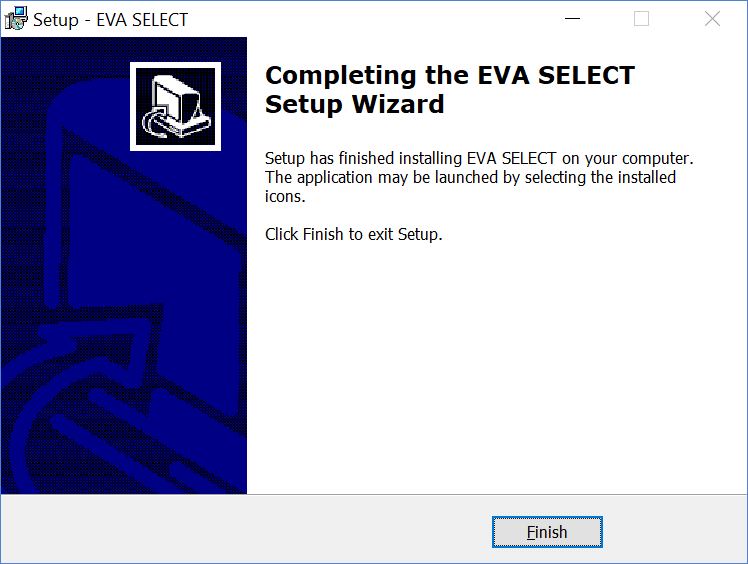

   When the installation is complete, the Completing screen appears.



8. Click Finish.

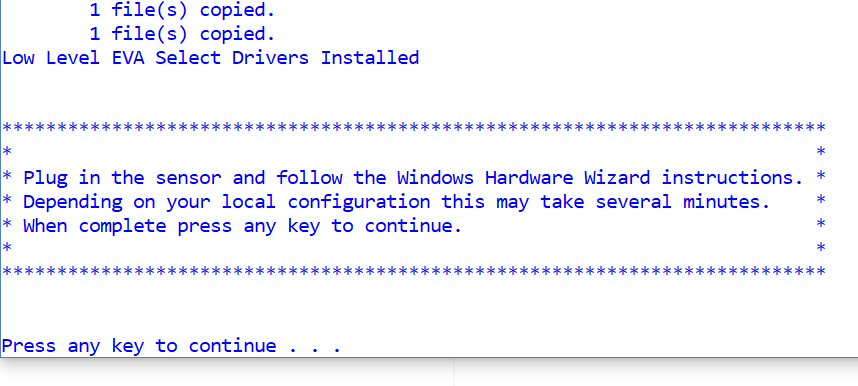

9. When the computers prompts you to plug in the sensor, plug it in, and then press any key.



10. If a generic Windows Hardware Wizard window appears, an Eva Select sensor was not installed previously). Click OK to progress through the wizard.

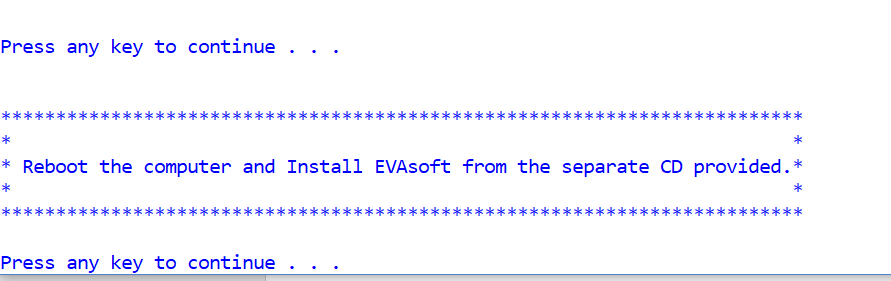

11. When a note about installing EVAsoft appears, ignore it, and press any key.



Testing

The ImageWorks Eva Select sensor is now functional in Dentrix Ascend Imaging. To acquire a test image, do the following:

1. In the Imaging Procedures list, select Bitewing Single Image.



2. Select any teeth for the test.

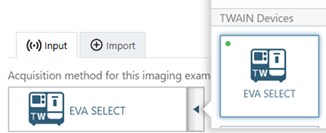

3. On the Acquisition Method for this imaging exam menu, select EVA SELECT (under TWAIN Devices).



4. Click Proceed with Acquisition.



5. The Eva Select interface appears.

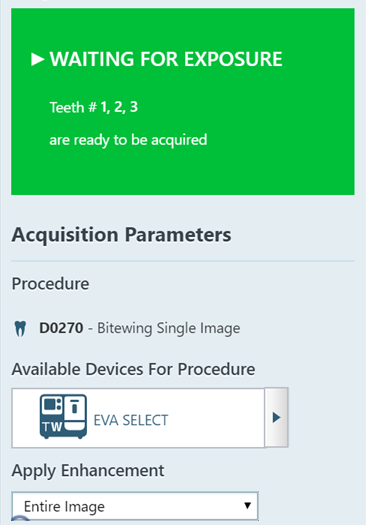

6. If this is the first time that you are using a particular study, on the Apply Enhancement list, select Entire Image.



   Note: Applying an enhancement needs to be done only once for a given study. The preference is saved for the next time the study is selected.

7. If this is the first time that you are using the ImageWorks TWAIN program, you must link the correct calibration file for your device.

   Note: This process must be done for each sensor.

   Do the following:

   1. Click the ellipsis button (...) on the Eva Select interface.

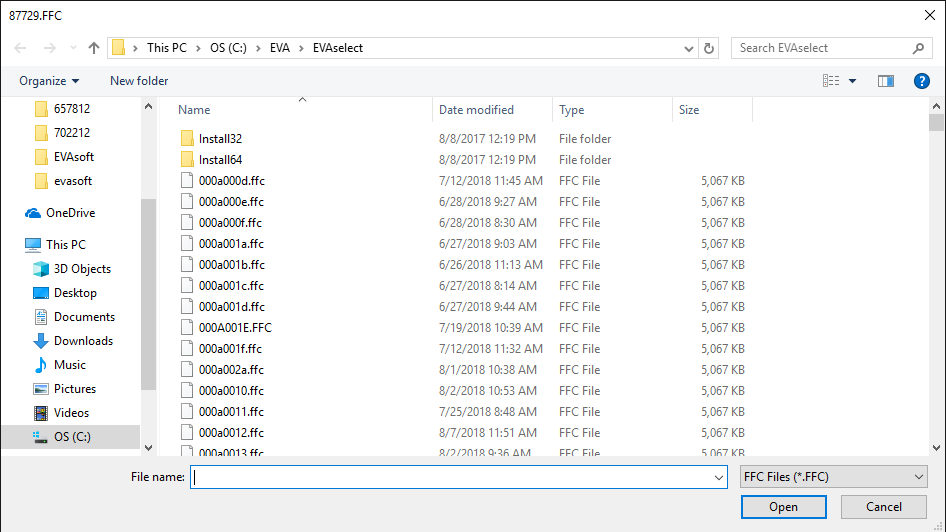

      A directory selection dialog box appears.



   2. Navigate to C:\EVA\EVAselect (if that directory is not already being viewed).

   3. You will notice one or more files with an "ffc" extension. Select the first .ffc file in the list.

   4. Click Open.

8. Click Finish Acquisition when you are finished capturing images.



Troubleshooting

To confirm that the ImageWorks Eva Select device driver is loaded and recognized by Windows, do the following:

1. Plug in an ImageWorks Eva Select sensor.

2. Open Device Manager.

3. Expand the Universal Serial Bus controllers category.



4. Right-click EV71JU215, and then select Properties.

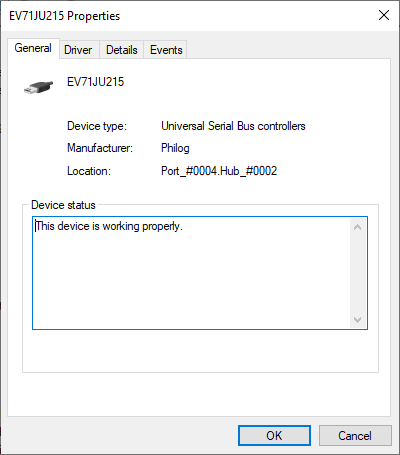

5. Make sure "This device is working properly" appears.

If the device does not appear in Device Manager, or if Device Manager states that "This device is not working properly," one of the following issues might be the cause:

• The drivers are not properly installed. Try removing and reinstalling them.

• The sensor has a bad connection or is defective.
