Midmark Progeny ClearVision Sensor Setup Guide

This guide describes the installation and setup of the Midmark Progeny ClearVision intraoral sensor for use with Dentrix Ascend Imaging.

Overview

Dentrix Ascend Imaging supports the acquisition of intraoral images from the Midmark Progeny ClearVision intraoral X-ray sensor on a computer running the Windows operating system. Drivers for the Progeny ClearVision sensor must be installed on each computer that the Progeny ClearVision sensor will be connected to. Calibration (correction) files must be installed on each computer that the Progeny ClearVision sensor will be connected to.

Note:

  • Progeny and e2v sensors are not able to function on the same machine. If you are changing from an e2v sensor to a Progeny sensor, see the "Troubleshooting" section.

  • Prior to the installation of the Progeny ClearVision sensor, the acquisition agent application must be installed on each computer that will acquire images. Refer to Setting up the acquisition agent for instructions on downloading and installing the acquisition agent.

Installation

To install the Progeny ClearVision device drivers, do the following:

  1. Obtain the Progeny driver with ClearVision support from the Midmark/Progeny website or USB flash drive included with the device.

    Important: Do not connect the USB interface cable to your computer until after you have installed the device driver.

  2. Right-click the Setup application, and the select Run as Administrator.

  3. If a User Account Control window opens, click Yes.

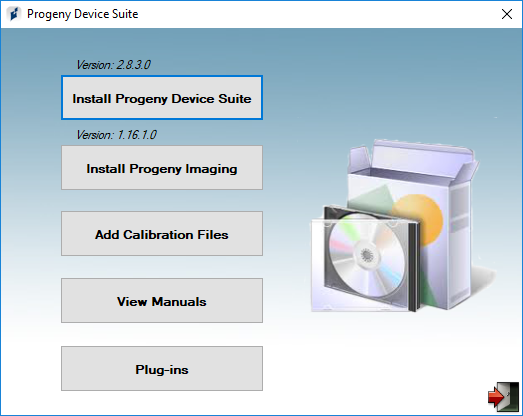

    The Progeny Device Suite window opens.

  4. Click Install Progeny Device Suite.

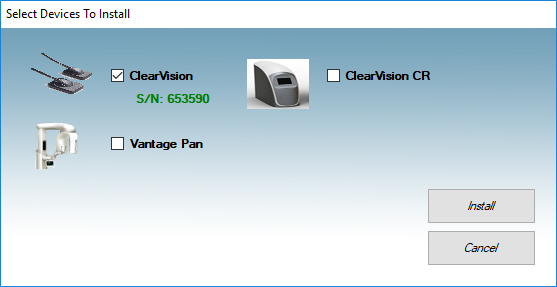

    The Select Devices To Install dialog box appears.

  5. Click Install.

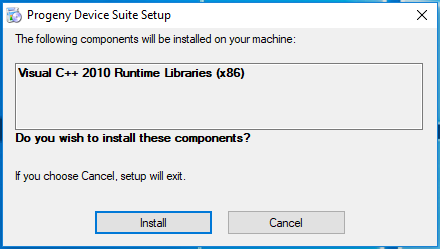

  6. If the Setup prompts you to install the Visual C++ 2010 Runtime Libraries, click Install.

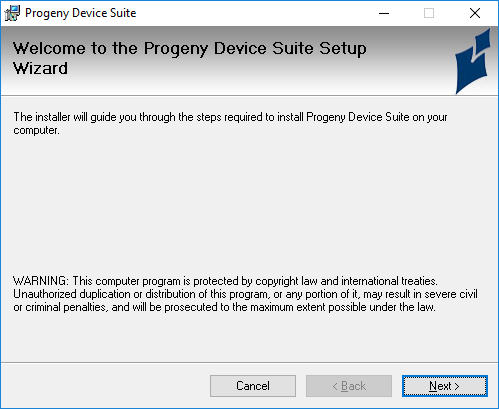

    The Welcome screen appears.

  7. Click Next.

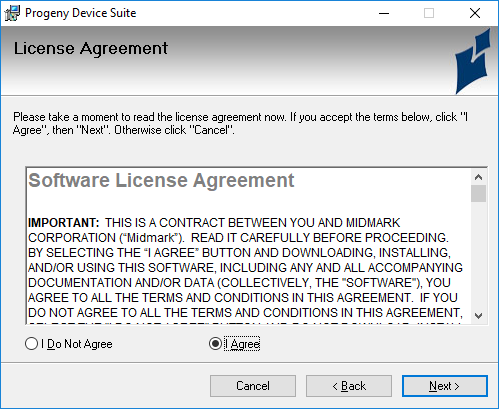

    The License Agreement screen appears.

  8. Select I Agree, and then click Next.

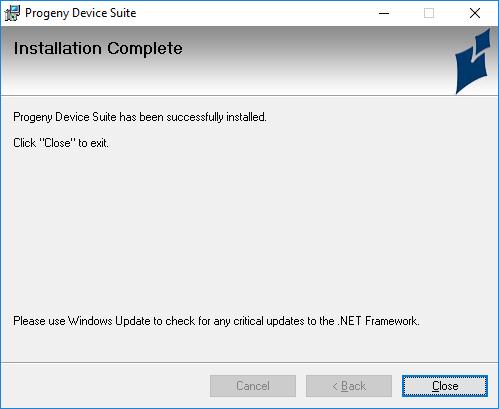

    The Installation Complete screen appears.

  9. Click Close.

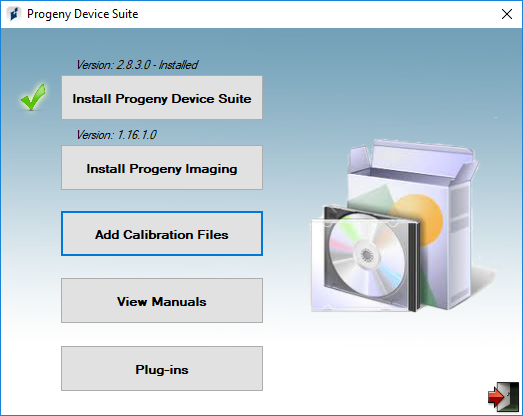

  10. In the Progeny Device Suite window, click Add Calibration Files.

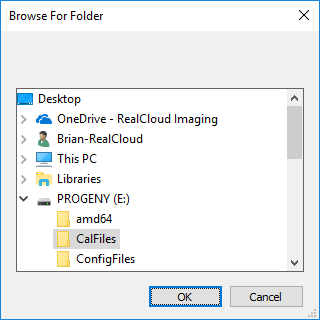

  11. Accept or browse to the folder that contains the Progeny ClearVision sensor calibration files. The files are located in a CalFiles folder on the USB flash drive that came with the sensor.

  12. Close the Progeny Device Suite window.

  13. Connect your Progeny ClearVision sensor to the computer. Windows automatically detects the drivers.

Testing

The Progeny ClearVision sensor is now functional in Dentrix Ascend Imaging. To acquire a test image, do the following:

  1. In the Imaging Procedures list, select Bitewing Single Image.

  2. Select any teeth for the test.

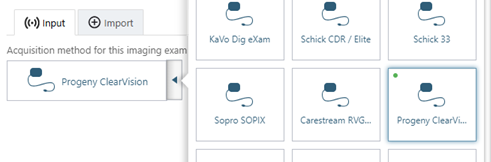

  3. On the Acquisition Method for this imaging exam menu, select Progeny ClearVision.

  4. Click Proceed with Acquisition.

  5. Acquire an image using the Progeny ClearVision sensor.

Troubleshooting

Device Driver

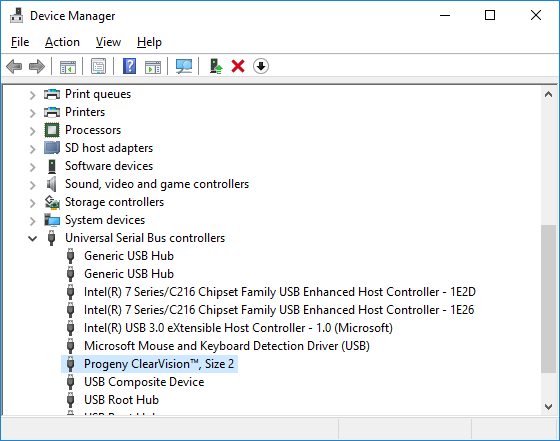

Make sure that the Progeny ClearVision sensor is detected by the computer. Open Device Manager, and then verify that the "Progeny ClearVision" device exists in the Universal Serial Bus controllers category.

Removing e2v Sensor Files

Note: Following these steps will cause any e2v sensors that were used before to stop working on this computer.

To remove e2v sensor files, do the following:

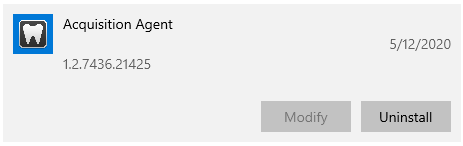

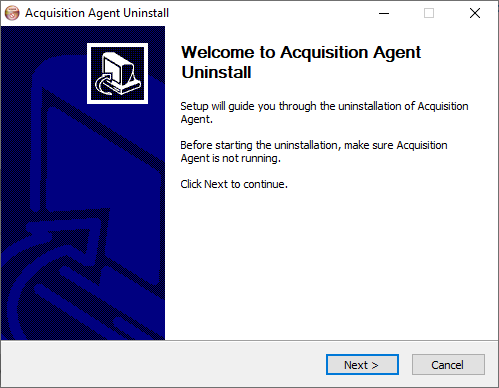

  1. Uninstall the acquisition agent.

  2. Follow the steps in the "Installation" section to install the Progeny Device Suite and calibration files for the sensor.

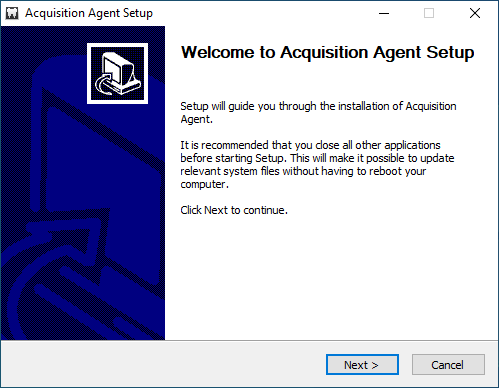

  3. Reinstall the acquisition agent.

  4. Restart the computer.

    The Progeny ClearVision sensor should now work with the computer.
