Vital Signs tab

You can add vital signs data in three ways:

By connecting a vital signs monitor that imports data directly into OMSVision. To use this method, you will need to install and use the Vital Signs Monitor Client.

Through manual data entry.

By import vital signs data into the Electronic Health Records (EHR) of OMSVision, which will save you from having to transcribe data. You can transfer your patients' vital signs electronically from approved monitors and store them securely.

The following is a list of approved devices you can use to import data:

Mortara Surveyor S12 or S19

Criticare:

ComfortCuff

Poet line

Scholar line

nGenuity*

Welch Allyn:

Spot LXi

Spot Vital Signs

VSM 5200

VSM 300

Datascope: Any monitor that supports DIAP

Phillips VS Series:

Network

Serial

GE: Dash 2000

Edan:

iM50*

iM80*

Note: The devices listed above have been certified to work with OMSVision. If you have devices other than those listed, they may work with OMSVision but have not been tested.

To manually add vital signs

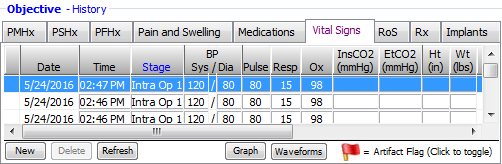

With a case selected (in the Cases Section), in the Objective - History section of EHR, on the Vital Signs tab, click Add.

Enter the following details:

Time - The time the patient's vital signs were taken.

Stage - The stage the patient is in.

BP Sys/Dias. - The patient's systolic and diastolic blood pressure readings.

Pulse - The patient's heart rate.

Resp. - The patient's respiratory rate.

Ox. - The patient's oxygen level.

Ht. - The patient's height in inches.

Wt. - The patient's weight in pounds.

BMI - The patient's body mass index, which is calculated automatically using the height and weight you enter.

Temp. - The patient's temperature.

EKG - The EKG results.

Comments - Comments regarding the vital signs entry.

To delete vital signs

Select the entry that you want to delete.

Click Delete.

A confirmation message appears.

Click Yes.

To refresh vital signs data

Click Refresh.

To attach an artifact flag

Select an entry.

Click the Artifact Flag(Click to toggle) link to assign or remove the artifact flag for the entry.

An artifact flag is a red flag to the left of an entry.

Need more help?

You can visit our website or contact OMSVision Customer Support.
