Dentrix Detect AI helps you with the following FDA approved features:

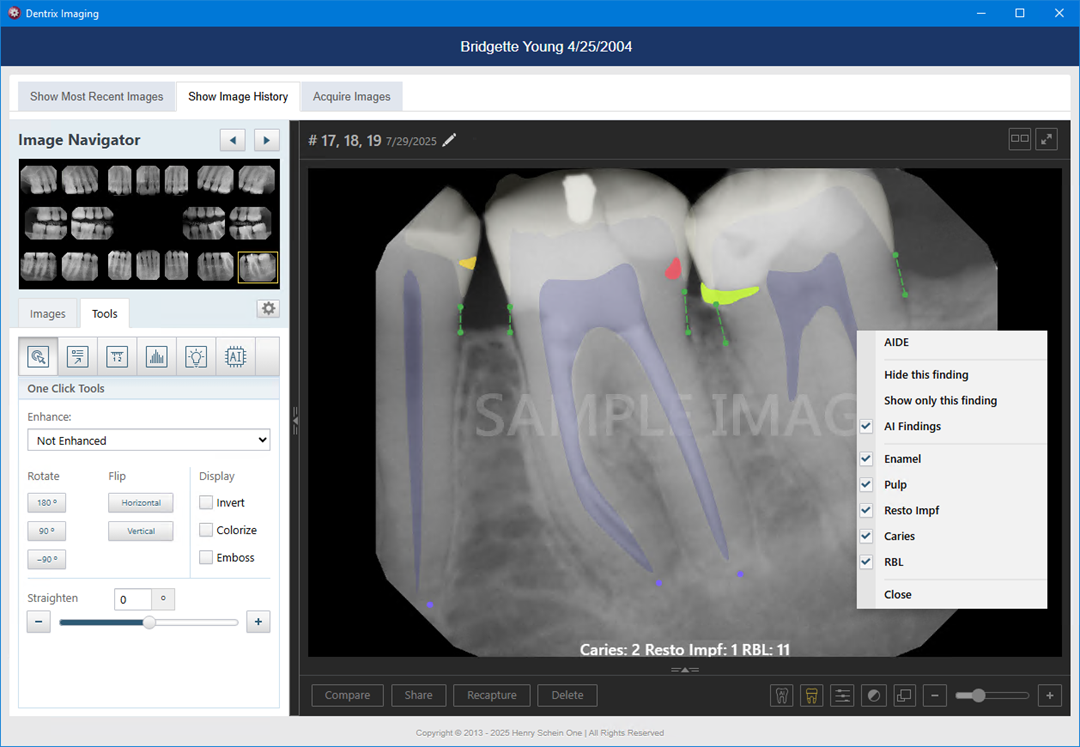

· Detecting caries in the enamel (dotted line yellow rectangles) and dentin (solid line red rectangles) on all primary and secondary teeth of patients three years and older.

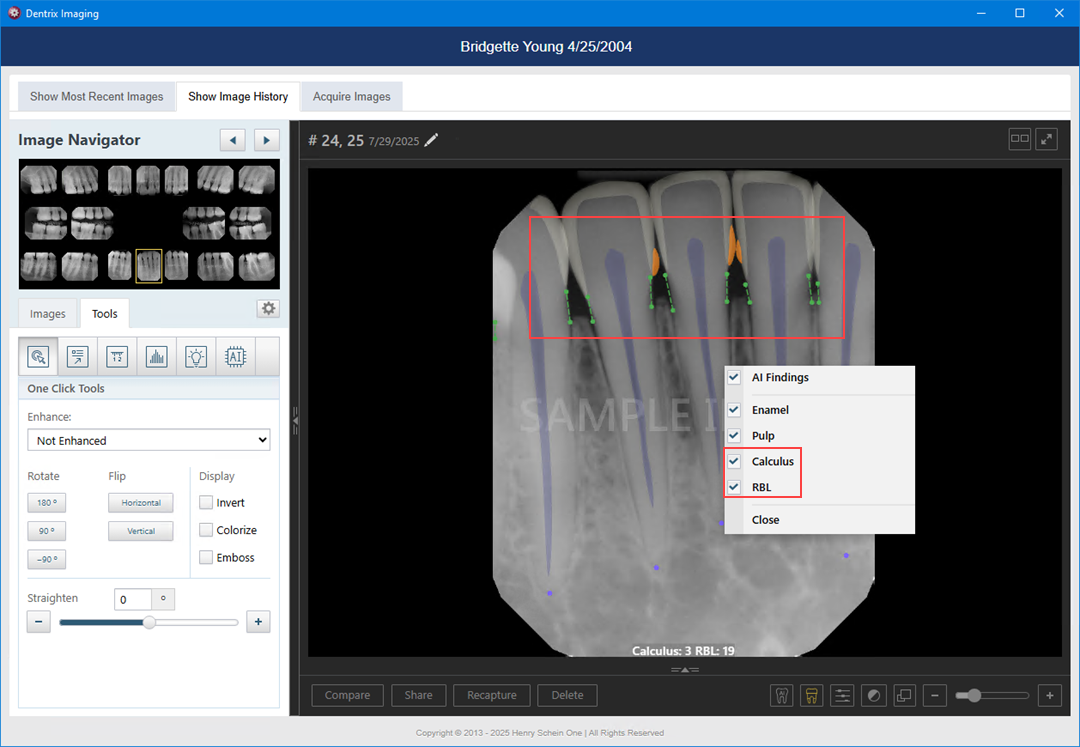

· Measuring interproximal Radiographic Bone Levels in bitewings and Periapical Radiographs (PAs) for patients who are at least 12 years old. Bone level detection is only possible with mesial and distal surfaces. RBL measurements appear as green, yellow, orange, or red dotted lines.
· Detecting periodontal radiolucency (PRL) for patients 22 years and older to more effectively identify bone demineralization due to infections around root apices, cysts, and other causes. PRL is indicated by a red circle or oval.
· Detecting interproximal calculus to educate your patients 12 years and older on the importance of scaling and root planing. Combined with measuring interproximal radiographic bone levels, Dentrix Detect AI illustrates disease prognosis for the patient and clinician. Interproximal calculus is indicated by an orange circle or oval.
· Detecting restoration imperfections in patients 22 years and older by identifying imperfect crown and filling margins and voids. A restoration imperfection is indicated by a yellow rectangle.
To view additional Dentrix Detect AI indications
1. In the Patient Chart, click the Launch Dentrix Imaging toolbar button.
The Dentrix Imaging window appears.
2. Click the Acquire Images tab.
3. Under Imaging Procedures, click the Standard tab, and then select the imaging procedure you want to perform.
4. Click Proceed with Acquisition.
Dentrix Imaging acquires the selected images, submits them to VideaHealth, and displays them in Show Image History automatically.
