You can show or hide Dentrix Detect AI results for a selected AI finding or all AI findings in an image.
To show or hide Dentrix Detect AI results
1. Open the Patient Chart and select a patient.
2. In the Smart Image panel, click the image that you want to submit for AI analysis.

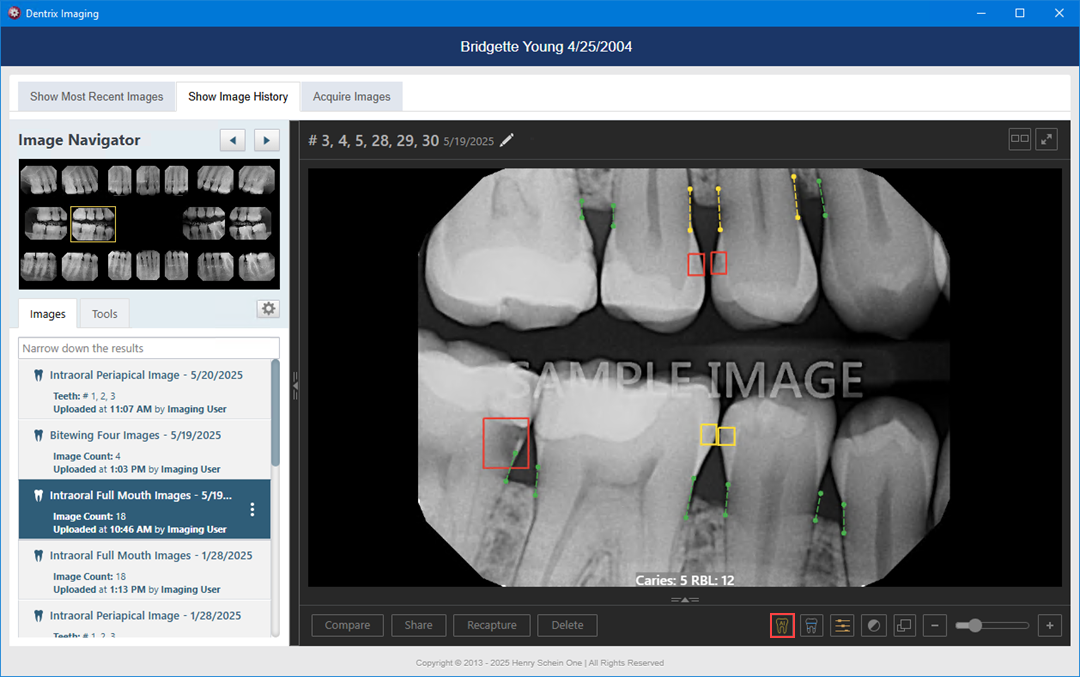

The Diagnostic Viewer appears, and the image is submitted to VideaHealth for processing. The VideaHealth AI button in the lower-right corner of the viewer turns bright blue, and any caries Dentrix Detect AI found are outlined in red. RBL measurements appear in green, yellow, orange, or red.
3. To hide or show a single AI finding, click the AI indicator (red rectangle).
The following menu appears.
Note: By default, caries, RBL, and root tip indicators always appear when images are analyzed with Dentrix Detect AI. You can also hide the indicators by clearing one or more of the check-marked indicators.
4. Do one of the following:
· Hide this finding – Click to hide the selected Dentrix Detect AI finding.
· Show only this finding – Click to show only the selected Dentrix Detect AI finding.
5. To hide or show all of the Dentrix Detect AI findings in an image, click anywhere an AI finding doesn’t appear.
The following menu appears.
6. Do one of the following:
· Hide all findings – Click to hide all Dentrix Detect AI findings.
· Show all findings – Click to show all Dentrix Detect AI findings.
7. To hide Dentrix Detect AI findings in Dentrix Imaging in the Show Image History tab, click the Show/hide annotations and measurements button.
