Notes:
· If you have already set up the device with the DTX Studio dashboard, click Testing KaVo devices integration.
· The following steps describe setting up the DIGORA Optime device. If these steps do not apply to your device, contact your device's manufacturer for instructions on how to add your device to the DTX Studio driver dashboard.
To set up KaVo device integration
1. Open the System Tray, and right-click the DTX Studio dashboard icon.
2. Click Settings.
The Settings dialog box appears.
3. If your device is not listed, click Add device manually.
The Add a device dialog box appears.
4. Type the Serial number of your device, and then click OK.
5. In the Dentrix Imaging Center, select a Panoramic, Cephalometric, or 3D exam.
6. Select Kavo Devices, and then click Proceed with Acquisition.

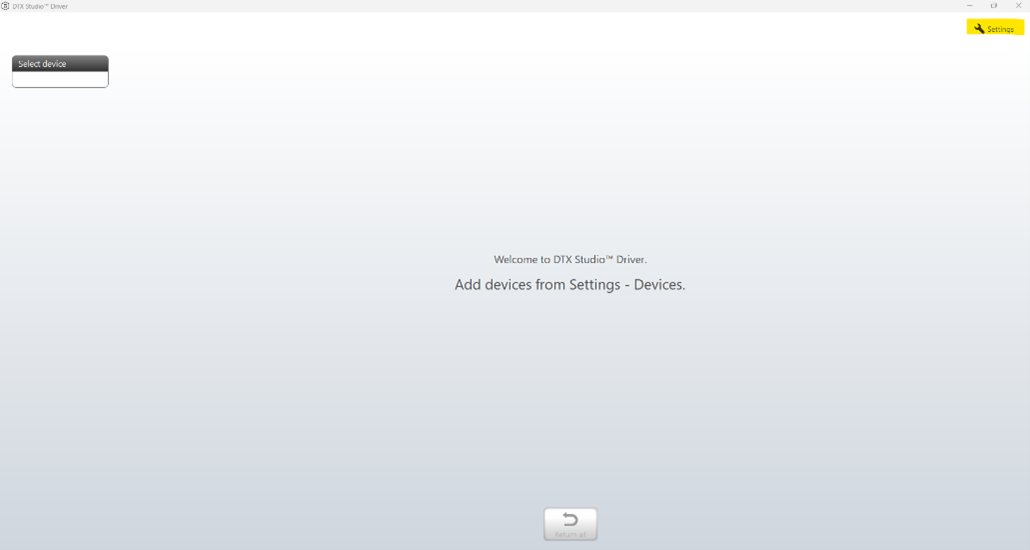

The DTX Studio dashboard appears. If no device is listed, click Settings.
7. In the Settings dialog box, click Add, and then select the device that you want to add.
