Depending on the sensor model, adjusting image quality differs.
To adjust Carestream sensor image quality for the 6200 model

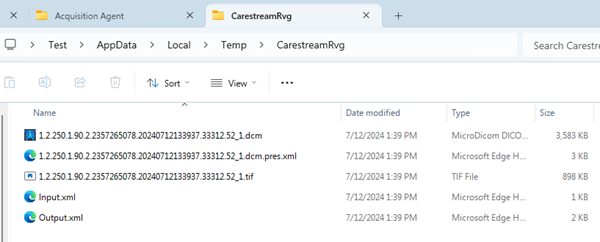

1. Navigate to %temp%/CarestreamRVG.
2. Copy the DCM image file.
Note: If a DCM image file does not exist, capture a 1PA exam with the sensor. After acquisition, the image appears in the Temp folder.
3. Paste the image to C:\Program Files (x86)\Common Files\Trophy\IPET\config\sample_images, and then rename the file rvg_6200.dcm.
Note: If a file with that name already exists, rename the existing file to old_rvg_6200.dcm, and then retry naming the new file.
4. Navigate to C:\Program Files (x86)\Common Files\Trophy\IPET\bin, and double-click ipet.exe.
A warning message appears.
5. Click I agree.
6. Select RVG 6200, and then click Open CS Adapt Library.
7. Do one of the following:
· Select the filter you most prefer.
· Select Modify Favorite for more options.
· Select Apply at acquisition.
8. To apply filtering to new images, click Save and Exit.
