Viewing images of selected teeth

You can view the images of teeth you selected in the Graphic Chart panel of the Patient Chart.

To view images of selected teeth

1.   In the Graphic Chart, select one or more teeth that you want to view the images of.

2.   In the Dentrix Imaging toolbar, click the Show Images for the Select Teeth in Chart.

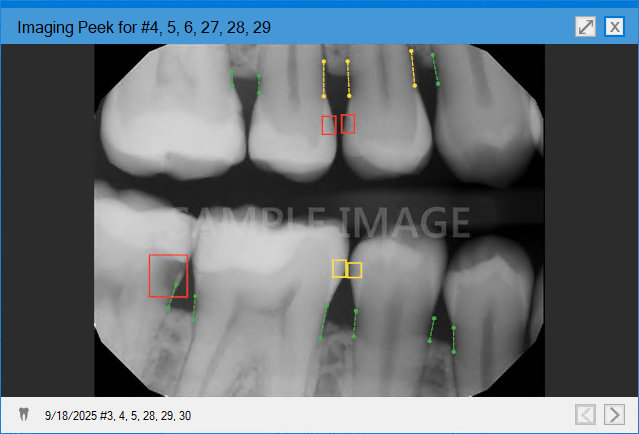

The Imaging Peek viewer for the selected teeth appears.

Note: If you are using Dentrix Detect AI, the results will appear in the Imaging Peek viewer.

3.   To page through the images for the selected teeth, click the Previous Image or Next Image buttons in the lower-right corner of the viewer.

Note: In the lower-left corner of the Imaging Peek viewer, an icon corresponding to the image type of the selected tooth or teeth appears. To view the history of the images of the selected tooth or teeth, click the icon.

4.   To re-size the viewer, click the Re-size button adjacent to the Close button in the upper-right corner of the viewer.
